55inch floor-standing double sided digital signageCompany News,Application Plan

SMT-FS550D vertical double-sided ultra-thin model is a new ultra-thin all-in-one product launched by our company. Product features are as follows:

1.The mainstream professional Android/computer (optional) solution design in the market has good heat dissipation, stable performance and easy maintenance.

2.The high-brightness screen, 1080P high-definition resolution, and ultra-wide viewing angle LCD panel avoid the blind viewing angles of ordinary similar products on the market and further improve the display effect.

3.This product adopts ultra-narrow bezels and an ultra-thin body, with a thickness of only 27mm;

4.The double-sided screens display images synchronously, and customers inside and outside the window can receive the visual impact of videos and pictures brought by information release at the same time, increasing the attraction and promotion of mobile customers and potential customers;

5.Abandon the traditional passive reception publicity method that has trouble replacing traditional window posters, no video, and monotonous pictures, and brings a stronger publicity effect;

6.The concealed wiring design of network cables and power cables makes the overall appearance better;

7.In terms of system design, we adhere to the stability and advancement of signage series products to provide customers with the same management experience as always.

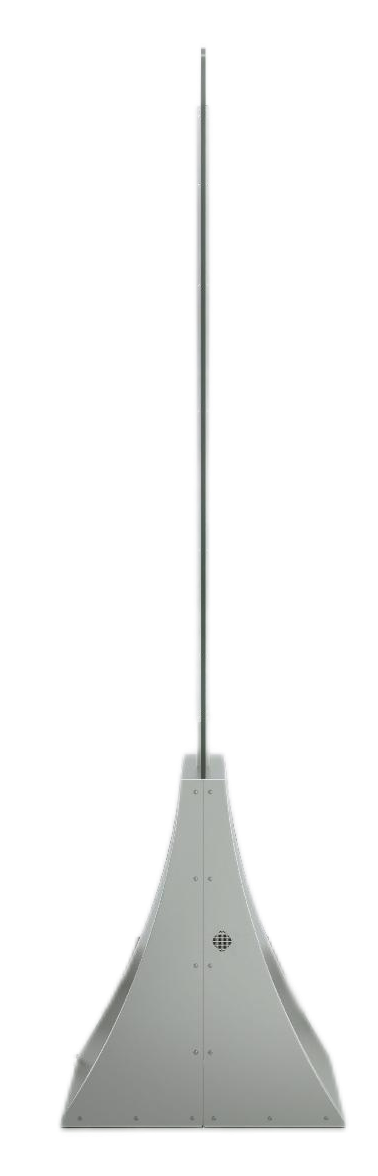

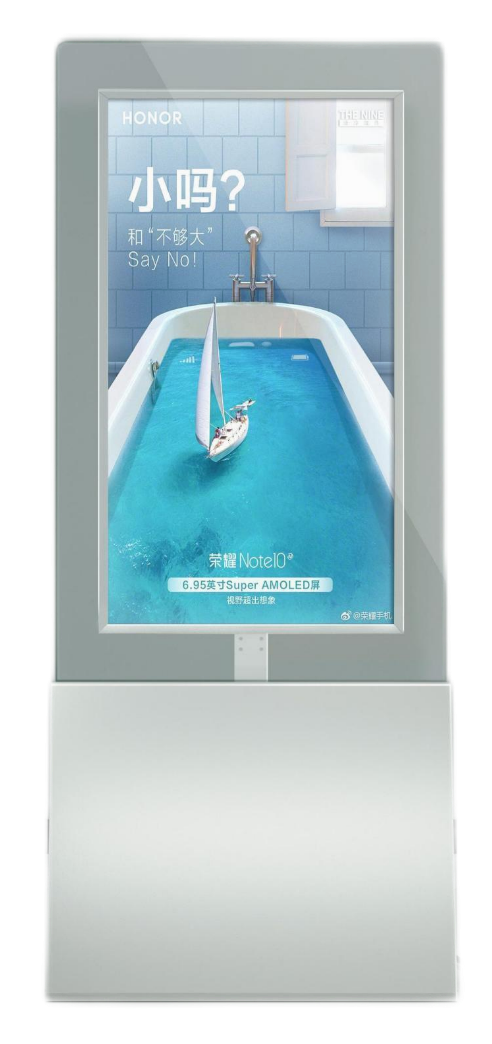

Product picture

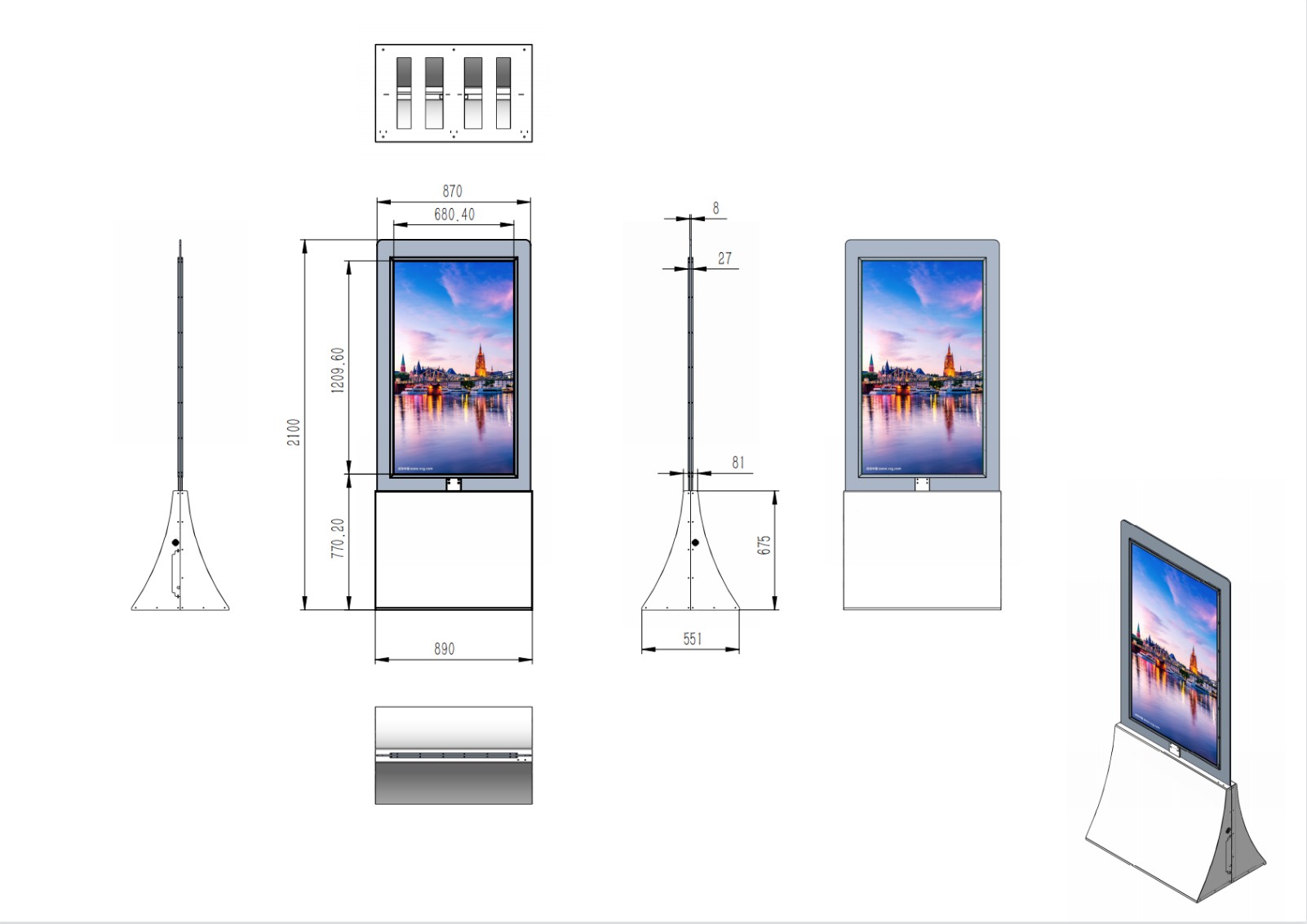

Size chart

Specifications

Main indicators of the display screen
highest resolution		1920 × 1080 progressive display
Viewing angle (CR ＞10)		178(horizontal); 178º(vertical)
color		16.7M color
brightness		Bright surface (inner screen)＞3 00 cd/m2 High gloss surface (external screen) >7 00 cd/m2
Contrast		＞14 00 : 1
Signal response time		<8 ms
Visible area		1209.6mm(H)×680mm(V)
Backlight form		led
LCD panel screen brand		BOE
Backlight life		＞50000 hours

Configuration optional (1: Android/2: Windows system)
1: Android configuration
CPU		RK3288 Cortex-A9 quad-core, maximum frequency 1.6GHz
GPU		GPU Mail-T764
RAM		2G (optional 4G )
Storage ROM		16G (optional 32G )
External extended storage		TF card (supports up to 128 G)
external interface		USB×2, RJ45 ×1
Ethernet		10/100M adaptive Ethernet
Wifi		Built-in high-performance USB interface WiFi module, supporting IEEE 802.11 b/g/ n z
remote control		Standard infrared remote control receiver and infrared receiving pin header

Software configuration
operating system		Android 7.0 and above
basic software		Web browsing, online chat, email, e-books, resource manager, clock, alarm clock, calculator, recording, etc.
Features		Remote software controlled timer switch
		Dual screens with different displays, the inner and outer screens can play different content respectively
		Dual-screen separate control, the internal and external screens can respectively define timed power on and off for different periods. For example, the internal screen can be timed to power off at 18:00 after work , and the external screen can still be played to the outside. For example, it can be set to a timed power off of 21:00 .
		Real-time remote monitoring, 7*24 hours unattended
		Support horizontal screen and vertical screen automatic configuration
		Support wireless screen projection (optional)
		Support remote upgrade

2: Computer configuration
CPU		J1900/ I3/I5/I7 (optional) Main frequency 2.0GHz -2.4 GHz
Memory		DDR3 4G /8G/16/G
storage		128G /256G/500G high-speed solid state drive
display core		CPU integrated HD graphics Intel® HD Graphics Series
interface		USB×4, HDMI OUT×1, VGA OUT×1, AUDIO OUT×1, MIC IN×1
Ethernet		Support 10/100M
Wifi		Support wifi 802.11 b/g/n 2.4GHz
3G/4G module (optional)		Support TDD/FDD/WCDMA/TD-SCDMA/GPRS/GSM/EDGE
Functional indicators
operating system		WIN 7/ WIN 10
basic software		Web browsing, online chat, email, e-books, resource manager, clock, alarm clock, calculator, recording, etc.
Features		Remote software controlled timer switch
		Real-time remote monitoring, 7*24 hours unattended
		Support horizontal screen and vertical screen automatic configuration
		Support wireless screen projection (optional)
		Support remote upgrade
Supported video formats:		Support AVI (H.264, DIVX, XVID), rm, rmvb , MKV (H.264, DIVX, DIVX, XVID), WMV, MOV, MP4 (H.264, MPEG, DIVX, XVID), FLV (H. 263, H.264), TS, 3GP, MPG and other formats
Supported image formats:		BMP, JPEG, PNG, GIF and other common formats
Supported audio formats:		MP3, WAV, WMA, AAC, 3GP and other common formats
volume		Management platform is adjustable
Automatically time on and off		support
play mode		Playback modes such as loop playback, interruption, timing, and fixed times
Electrical indicators and product dimensions
Power Specifications		Input voltage range: AC100V to 240V
Speaker power		10W×2
Maximum power consumption		≤150W
Standby power consumption		≤1W
Operating temperature		0℃～40℃
Working humidity		10%～90%, no condensation
storage temperature		-20℃～60℃
physical dimension		Height 1831×Width 737×Thickness 27MM
Installation method		floor-standing
Carton size		22757101050MM
weight		77KG
appendix
manual	×1 set
Remote control/battery	×1 set
Wifi antenna	×2 roots
power cable	×1 root
interface
USB	2
power plug	Cable outlet from the bottom, 1.5m long, with three-core plug
Ship type switch	Inside (inside the locked door)
Network port	1 interior (inside the locked door)
WIFI antenna interface	2 (can be built-in or external)

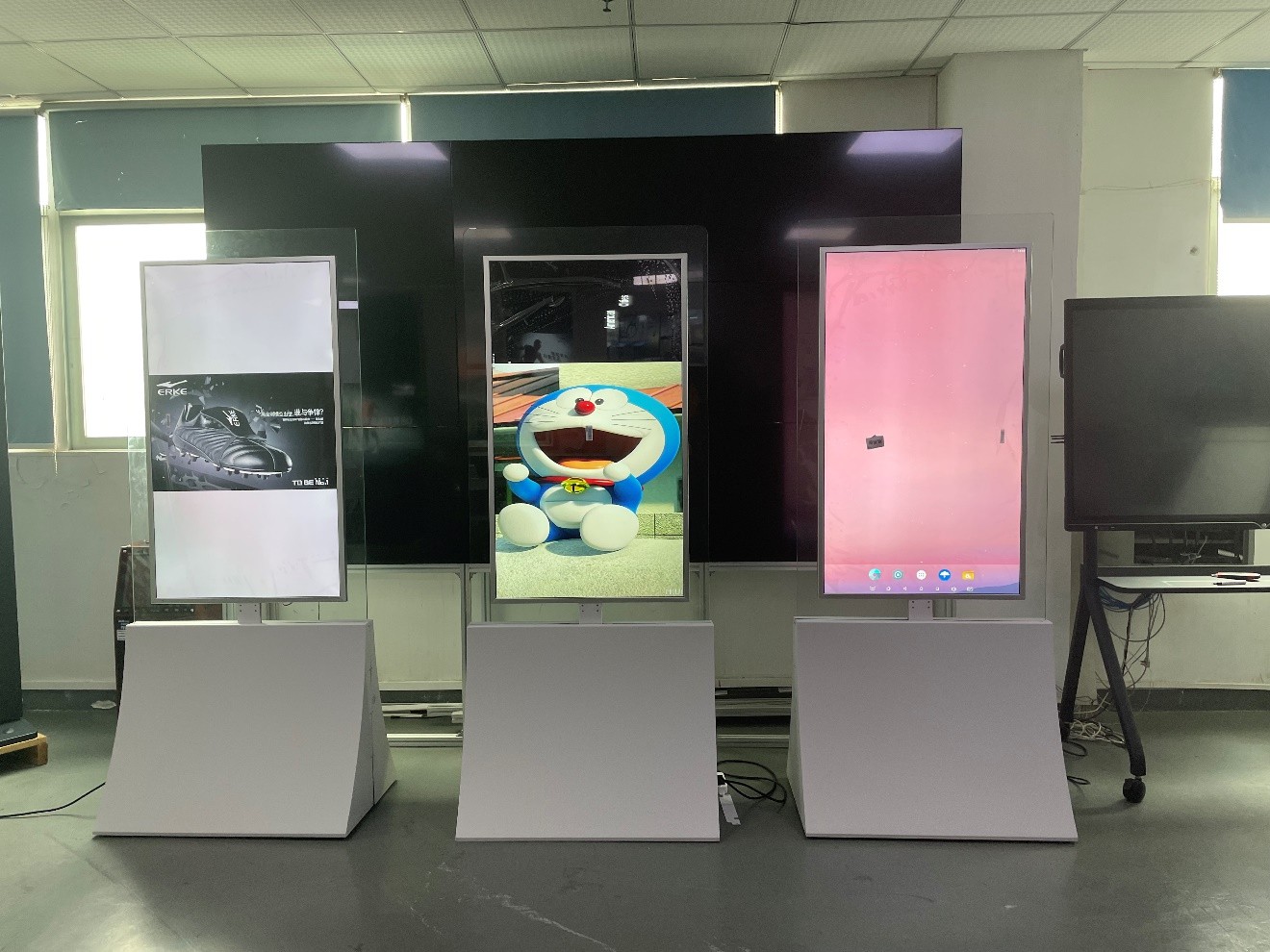

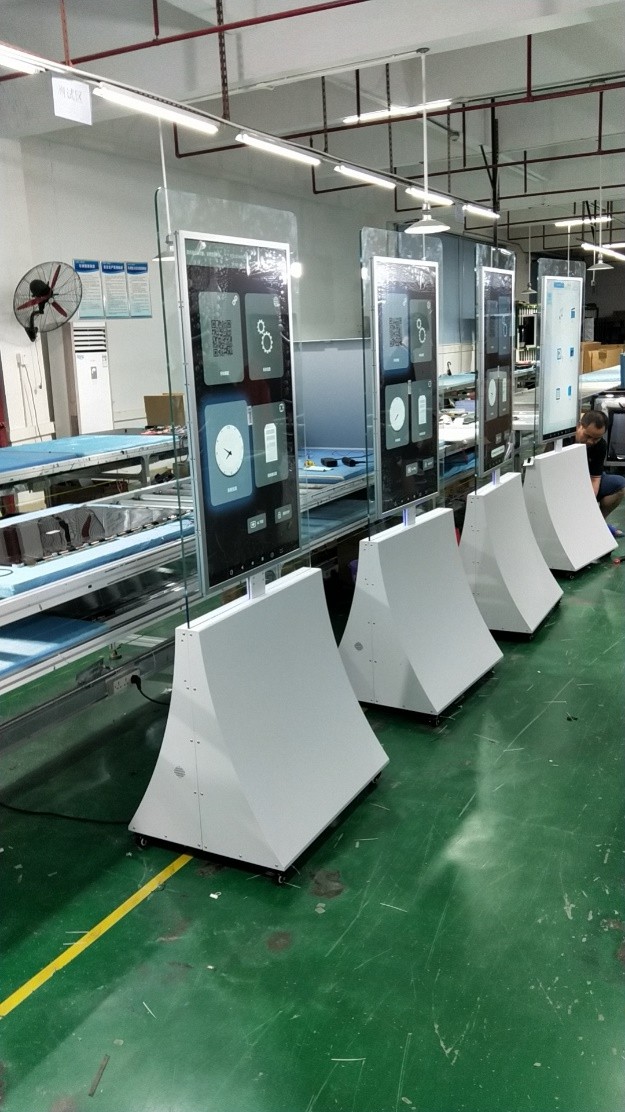

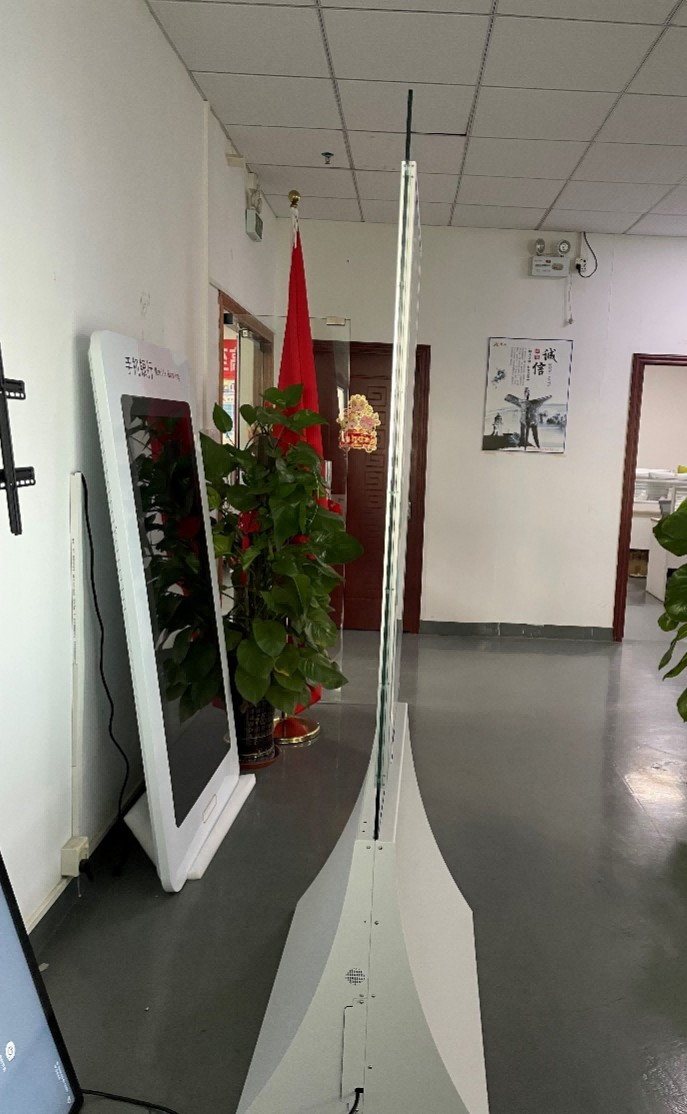

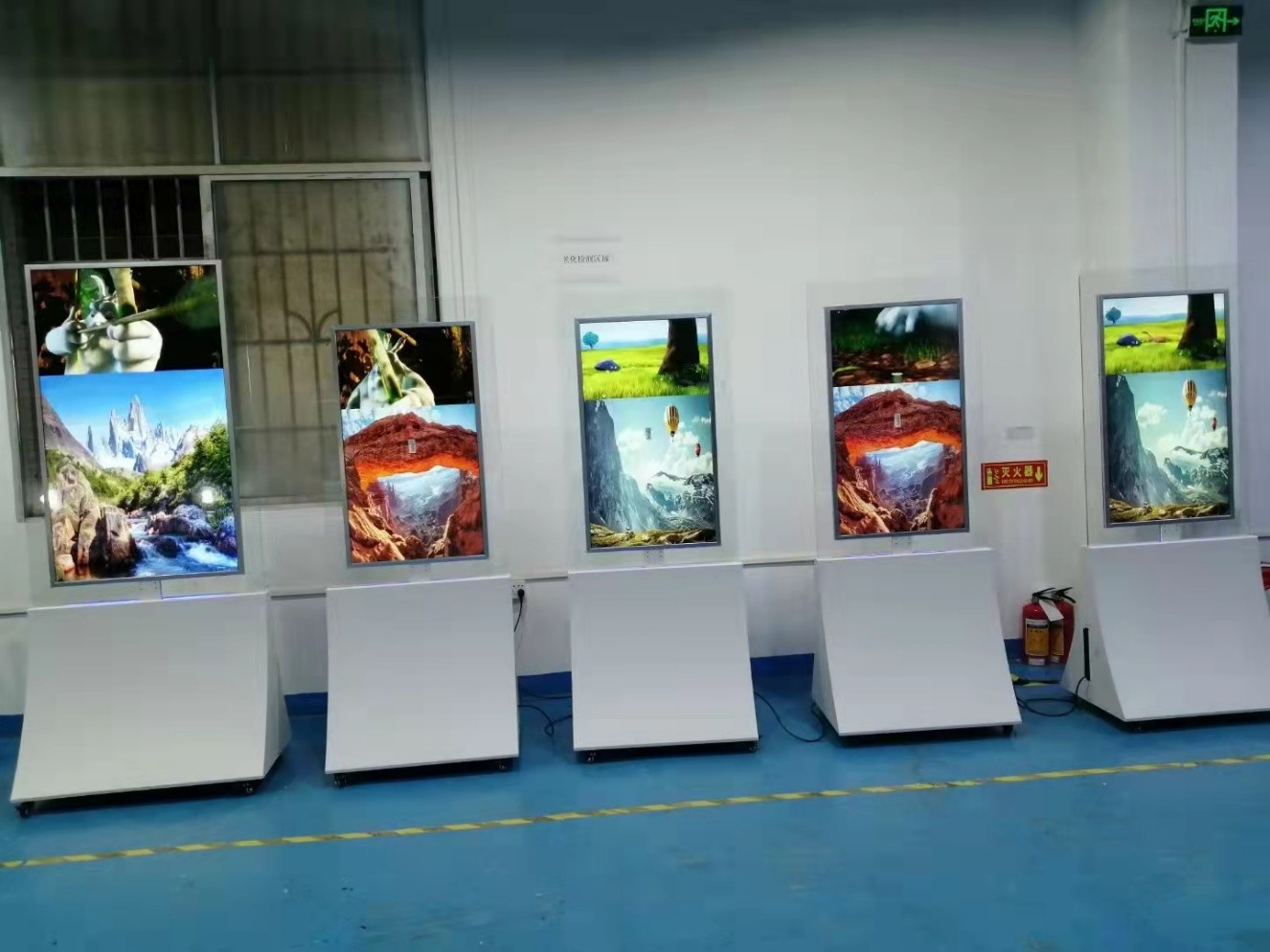

Pictures on site

55inch floor-standing double sided digital signage
