49inch hanging style double sided digital signage

Our company has its own independent appearance and has applied for appearance patents.
It adopts an all-aluminum back panel for self-heat dissipation and has openings on three sides of the body (left/right/bottom) to facilitate heat dissipation.
360mm/460mm two spacing lifting hole locations
Bottom extension USB*2, infrared remote control*1

Parameters

Our company has its own independent appearance and has applied for appearance patents.
It adopts an all-aluminum back panel for self-heat dissipation and has openings on three sides of the body (left/right/bottom) to facilitate heat dissipation.
360mm/460mm two spacing lifting hole locations
Bottom extension USB*2, infrared remote control*1

Product Detail

SMT-H490D conventional ultra-thin double-sided hanging screen is a new ultra-thin all-in-one product launched by our company. Product features are as follows:

1.The mainstream professional Android/computer (optional) solution design in the market has good heat dissipation, stable performance and easy maintenance.

2.The high-brightness screen, 1080P high-definition resolution, and ultra-wide viewing angle LCD panel avoid the blind viewing angles of ordinary similar products on the market and further improve the display effect.

3.This product adopts ultra-narrow bezels and an ultra-thin body, with a thickness of only 27mm;

4.The double-sided screens display images synchronously, and customers inside and outside the window can receive the visual impact of videos and pictures brought by information release at the same time, increasing the attraction and promotion of mobile customers and potential customers;

5.Abandon the traditional passive reception publicity method that has trouble replacing traditional window posters, no video, and monotonous pictures, and brings a stronger publicity effect;

6.The concealed wiring design of network cables and power cables makes the overall appearance better;

7.In terms of system design, we adhere to the stability and advancement of the signage series products to provide customers with the same management experience as always.

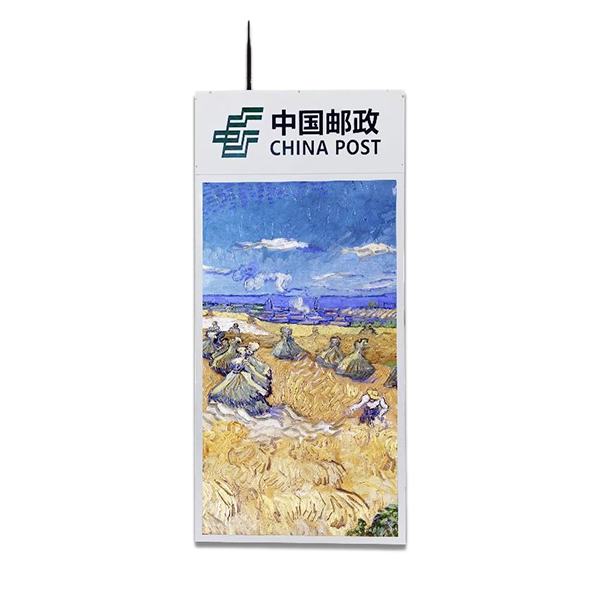

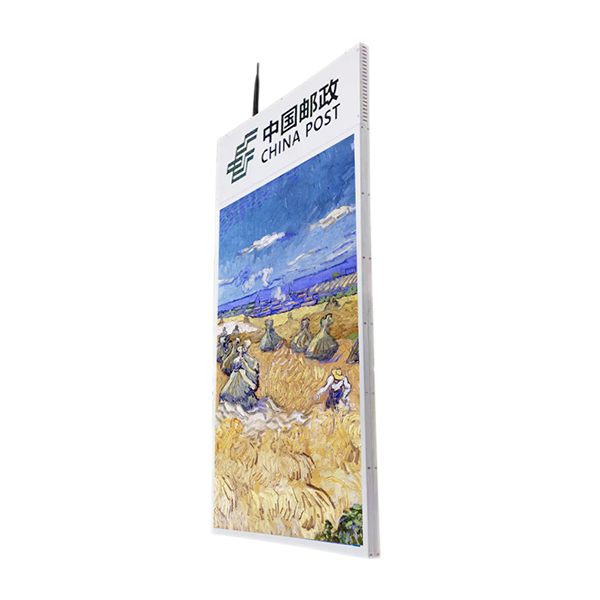

Product picture

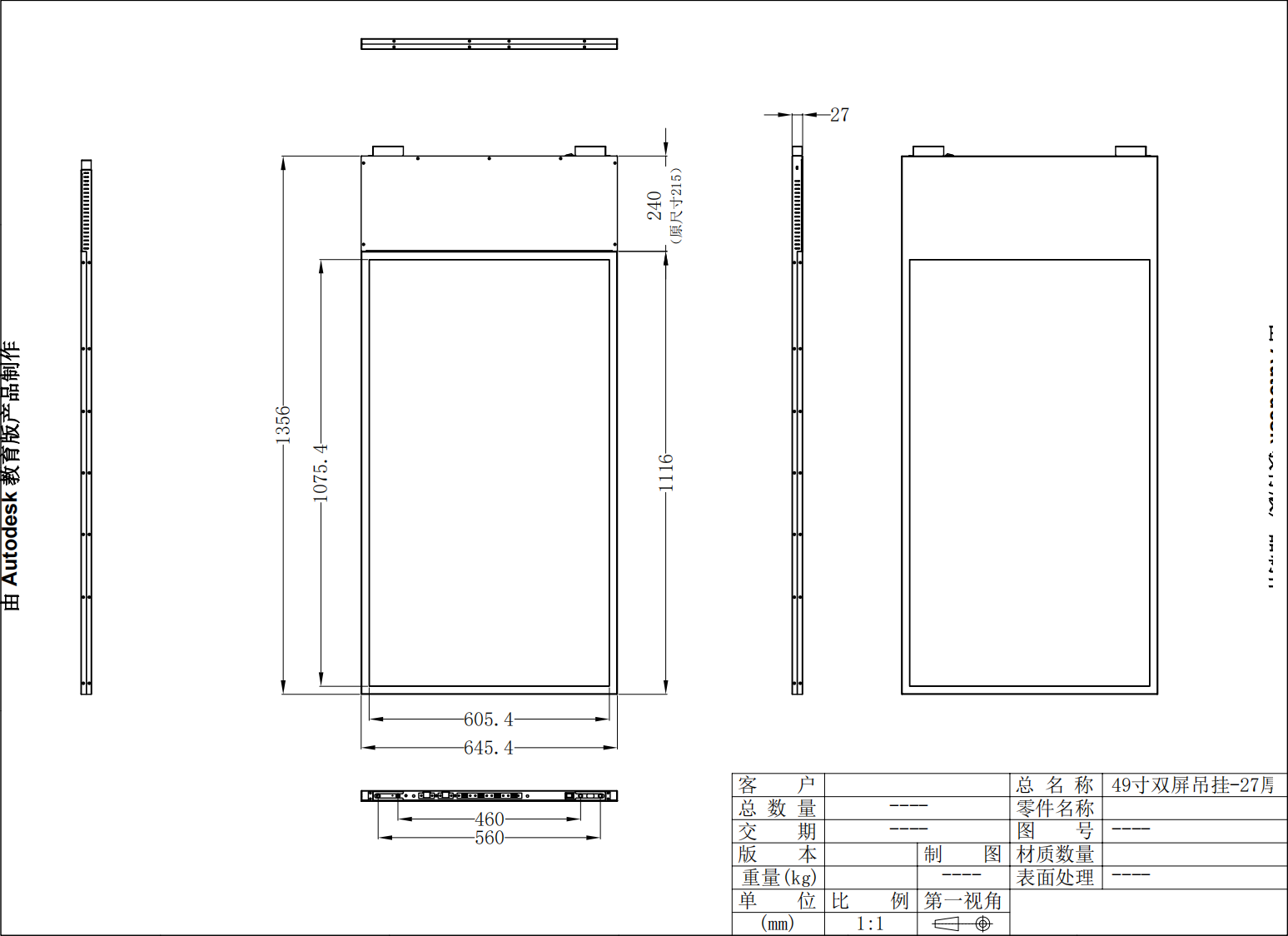

Size chart

Advantages

1.	Our company has its own independent appearance and has applied for appearance patents.
2.	It adopts an all-aluminum back panel for self-heat dissipation and has openings on three sides of the body (left/right/bottom) to facilitate heat dissipation.
3.	360mm/460mm two spacing lifting hole locations
4.	Bottom extension USB2, infrared remote control1

Specifications

Main indicators of the display screen
highest resolution		1920 × 1080 progressive display
Viewing angle (CR ＞10)		178(horizontal); 178º(vertical)
color		16.7M color
brightness		Bright surface (inner screen)＞3 00 cd/m2 High gloss surface (external screen) >7 00 cd/m2
Contrast		＞14 00 : 1
Signal response time		<8 ms
Visible area		1075mm(H)×605mm(V)
Backlight form		LCD
LCD panel screen brand		BOE
Backlight life		＞50000 hours

Configuration optional (1: Android/2: Computer system)
1: Android configuration
CPU		RK 3288 Android Quad Core 1. 8 GHz and above
GPU		GPU Mail-T764
RAM		2G (optional 4G )
Storage ROM		16G (optional 32G )
External extended storage		TF card (supports up to 128 G)
external interface		USB×2, RJ45 ×1
Ethernet		Support 10/100M
Wifi		Support wifi 802.11 b/g/n 2.4GHz
remote control		Support infrared remote control

Software configuration
operating system		Android 7.0 and above
basic software		Web browsing, online chat, email, e-books, resource manager, clock, alarm clock, calculator, recording, etc.
Features		Remote software control timer switch on and off
		Dual screens with different displays, the inner and outer screens can play different content respectively
		Dual-screen separate control, the internal and external screens can respectively define timed power on and off for different periods. For example, the internal screen can be timed to power off at 18:00 after work , and the external screen can still be played to the outside. For example, it can be set to a timed power off of 21:00 .
		Real-time remote monitoring, 7*24 hours unattended
		Support horizontal screen and vertical screen automatic configuration
		Support wireless screen projection (optional)
		Support remote upgrade

2: Computer configuration
CPU		J1900/ I3/I5/I7 (optional) Main frequency 2.0GHz -2.4 GHz
Memory		DDR3 4G /8G/16/G
storage		128G /256G/500G high-speed solid state drive
display core		CPU integrated HD graphics Intel® HD Graphics Series
interface		USB×4, HDMI OUT×1, VGA OUT×1, AUDIO OUT×1, MIC IN×1
Ethernet		Support 10/100M
Wifi		Support wifi 802.11 b/g/n 2.4GHz
3G/4G module (optional)		Support TDD/FDD/WCDMA/TD-SCDMA/GPRS/GSM/EDGE
Functional indicators
operating system		WIN 7/ WIN 10
basic software		Web browsing, online chat, email, e-books, resource manager, clock, alarm clock, calculator, recording, etc.
Features		Remote software controlled timer switch
		Real-time remote monitoring, 7*24 hours unattended
		Support horizontal screen and vertical screen automatic configuration
		Support wireless screen projection (optional)
		Support remote upgrade
Supported video formats:		Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, DIVX, XVID), WMV, MOV, MP4 (H.264, MPEG, DIVX, XVID), FLV (H. 263, H.264), TS, 3GP, MPG and other formats
Supported image formats:		BMP, JPEG, PNG, GIF and other common formats
Supported audio formats:		MP3, WAV, WMA, AAC, 3GP and other common formats
volume		Management platform is adjustable
Automatically time on and off		support
play mode		Playback modes such as loop playback, interruption, timing, and fixed times
Electrical indicators and product dimensions
Power Specifications		Input voltage range: AC100V to 240V
Speaker power		5W×2
Maximum power consumption		≤160W
Standby power consumption		≤1W
Operating temperature		0℃～40℃
Working humidity		10%～90%, no condensation
storage temperature		-20℃～60℃
physical dimension		Length 1356×Width 655×Thickness 27mm (hanging hole spacing 560mm)
Installation method		Vertical screen hanging
Carton size		1450180805MM
weight		32KG
appendix
manual	×1 set
Remote control/battery	×1 set
Wifi antenna	×1 root
power cable	×1 root
Lifting accessories	×1 set

Place of use
Public places	Subways, airports, bookstores, parks, exhibition halls, stadiums, museums, conference centers, job markets, lottery centers
Entertainment	Cinemas, gyms, resorts, entertainment venues, foot bath rooms, bars, Internet cafes, beauty salons, golf courses, etc.
Financial Institutions	Banks, securities, funds, insurance companies, pawn shops, etc.
Commercial organization	Large shopping malls, chain franchise stores, hypermarkets, specialty stores, star hotels, restaurants, travel agencies, pharmacies, etc.
real estate properties	Apartments, villas, office buildings, business buildings, model houses, sales offices, etc.
