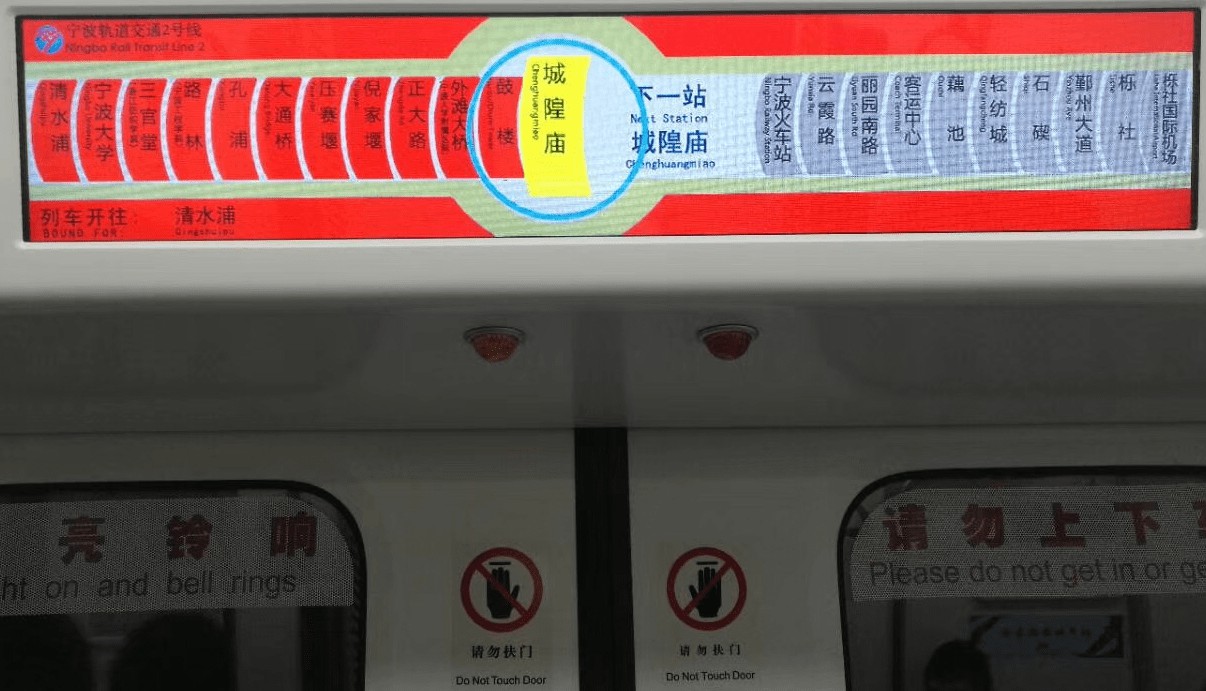

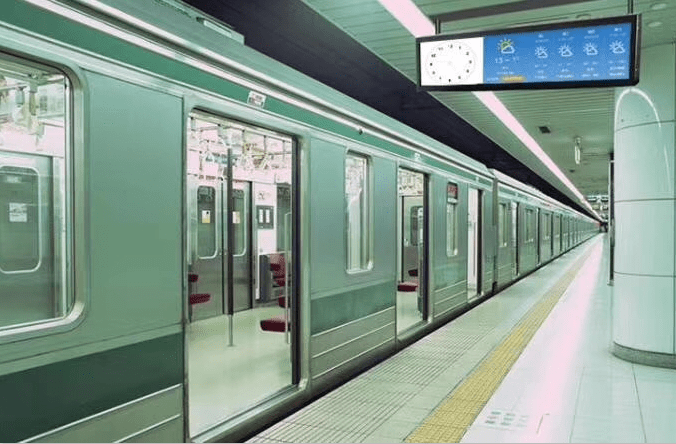

Metro stretch screen used on the Metro and platform with multifunction

Brand： SMT
Serial Number： SMT-SC490M
Country of Origin： Guangdong, China
Certificate： CE,CB,RoHS,ISO9001

Parameters

Brand： SMT
Serial Number： SMT-SC490M
Country of Origin： Guangdong, China
Certificate： CE,CB,RoHS,ISO9001

Product Detail

PAYMENT & SHIPPING TERMS

Price Quote	$400-$900
Minimum Order	1 Piece
Average Delivery Time	10-25 days
Payment Method	T/T
Package Details	1 piece/box
Ability to Supply	3000 pieces per month

PRODUCT DETAILS

Metro stretch screen used on the Metro and platform with multifunction

Quick Details for Metro bar/Metro bar LCD display/Metro bar advertiser/Metro bar monitor

Place of Origin: Guangdong, China (Mainland)

Brand Name: SMT

Model Number: SMT-SC490M

Type: TFT

Application: indoor

Viewing Angle: 178/178

Pixel Pitch: 0.4845(H)* 0.4845 )

Contrast Ratio: 4000:1

Brightness: 450-2000nits, 450nit/500nits/700nits/1000nits/1500nits/2000nits

Response Time: 8ms

Input Voltage: AC100~240V 50 /60 HZ

Warranty: 1 Year

After-sales Service Provided:

Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support

Product name: 1920x1080 display

Power Consumption: 10-150W

Display Mode: TN Mode, Normally Black

Interface: Dual channel LVDS

Signal support: HDMI DVI DP VGA

Certificate: CE/CCC/FCC/ROHS/ISO9001

Package Type: Foam+carton, customized wood pallet pack

OEM: yes

Operating system:

Android Network /Standalone /PC version

Keyword: Metro stretch screen

Product Specification for Metro stretch screen

Panel Details		Panel size	30", 34.8", 38", 41.5", 48.5", 49.5", 57.2", 57.5" optional
		brightness	450-800nits
		aspect ratio	16:3/16:4/16:5 optional
Decoding Formats		Video Format	MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,RM,RMVB,etc.
		FHD 1080P Video	YES
		Picture Format	JPG, BMP
		Text	TXT(UTF-8 format)
		Audio Format	MP3, WAV
Android Network version		Version 1	Quad-core 8G internal memory,HDMI,VGA input,USB,SD slot,WIFI,LAN,3G/4G optional
		Version 2	Dual core 4G internal memory, HDMI, VGA input, USB, SD slot, WIFI, LAN,3G/4G optional
		Version 3	Quad-core 8G internal memory,HDMI,VGA input,USB,SD slot,WIFI,LAN,3G/4G optional
		Version 4	Dual core 4G internal memory, HDMI, VGA input, USB, SD slot, WIFI, LAN,3G/4G optional
Standalone version		Version 5	HDMI,VGA input,USB,SD slot,4GB internal memory
		Version 6	USB,SD slot,4GB internal memory
PC version		Version 7	i3 4G RAM 500GB HDD,WIN7 OS,flexible config
		Version 8	i5 8G RAM 500GB HDD,WIN7 OS,flexible config
		Version 9	i7 16G RAM 500GB HDD,WIN7 OS,flexible config
General Information		Program Update	Manual update
		Playlist	YES
		Break-point Memory	YES
		Speaker	YES,2 x 2W and 2 x 5W optional
		Support Scroll Caption	YES
		Calendar	YES
		Inter-cut	YES, fixed time inter-cut
		Anti-theft	YES
		Auto-power on& off	Auto-power on& off
Optional Functions: Open frame, Touch screen, Motion sensor
Accessory	Power supply cable, user manual, remote control, keys
Temperature Details: Touch screen operating temperature:-41°C ~70°C, Storage Temperature: -50°C ~85°C
The machine operating temperature:-4~65°C, Storage Temperature:-7~65°C.
Features:
1.Application fields: public places, for example, shopping mall, restaurant, airport, square, commercial buildings, etc.
2. The outer shell is made of extra good quality metal material, which is painted by powder-spray craft work.
3.Support shockproof and dustproof function.
4. Adopts high transparent tempered glass (4-6 mm ) as a protection layer to prevent LCD/led panel being broken or distorted.
5. Locking system for anti-thieves prevented the storage devices ( SD/CF cards ) from being stolen.
6. Support IR Remote controller, the user can use a remote controller to operate the whole LCD. ( key buttons is optional )
7.Build-in speakers: 2 x 5W. Amplifier / 3.5mm audio jack is optional.
8. Playing circles automatically when powers on.
9. Allowing memory of breakpoint/AD management system.
10. Automatically generating playing list/Mixed displaying of videos, images, and music.

TFT LCD Stretched Display used on the bus, train, store chain, shop, hall, supermarket,

retail store advertising, and entertainment.

All pictures and function introduction for Metro stretch screen here are only for reference. Accurate details referred to Instruction brochure and Physical Package. SMT has the rights for the final explanation.
