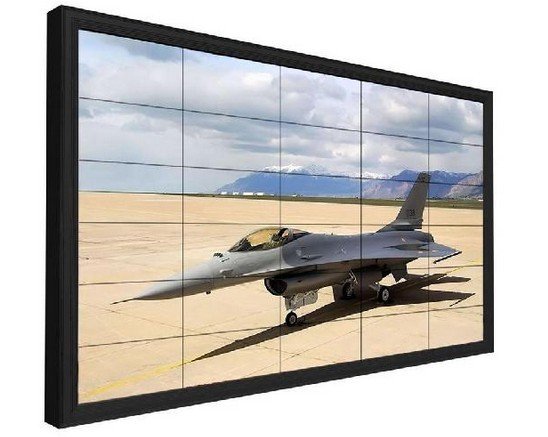

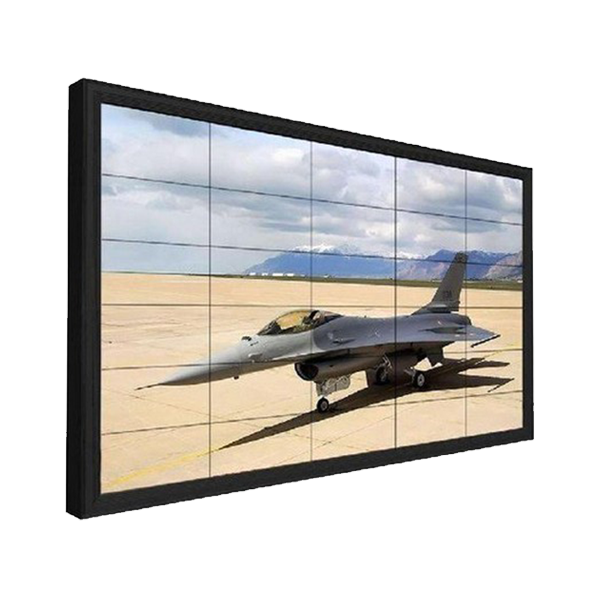

55 inch LCD video wall with 1.8mm bezel 500 nits 1920x1080 FHD indoor floor standing

Brand： SMT
Serial Number： SMT-VW55012
Country of Origin： Guangdong, China
Certificate： CE,CB,RoHS,ISO9001

Parameters

Brand： SMT
Serial Number： SMT-VW55012
Country of Origin： Guangdong, China
Certificate： CE,CB,RoHS,ISO9001

Product Detail

PAYMENT & SHIPPING TERMS

Price Quote	$650-$1350
Minimum Order	1 Piece
Average Delivery Time	10-25 days
Payment Method	T/T
Package Details	Wood pallet of video wall mounts
Ability to Supply	3000 pieces per month

PRODUCT DETAILS

55 inch LCD video wall with 1.8mm bezel 500 nits 1920x1080 FHD indoor floor standing

Quick Details for 55 inch 1.8mm TV wall/55 inch 1.8mm splicing wall/55 inch 1.8mm LCD video wall

Place of Origin: Guangdong, China (Mainland)

Brand Name: SMT

Model Number: SMT-VW5502

Type: TFT

Application: Indoor

Viewing Angle: 178x178

Contrast Ratio: MEGA DCR

Brightness: 500nits

Response Time: 5ms

Input Voltage: AC100~240V 50 /60 HZ

Warranty: 1 Year

After-sales Service Provided:

Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support

LCD video wall brightness: 500nits

LCD video wall contrast: 4000:1

LCD video wall bezel width: 3.5mm

LCD video wall backlight: LED

LCD video wall surface: anti-glare

LCD video wall application condition: indoor and semi-outdoor

video wall control method: RS232 control

LCD video wall daisy chain: RJ45 loop

LCD video wall power consumption: 230W

LCD video wall signal support: DVI/HDMI/VGA/AV/YPBPR

Packaging Details: Wood pallet of video wall mounts

Keyword: 55" 1.8mm LCD video wall

Product specification for 55 inch LCD video wall

LCD Video Wall Screen (LG IPS panel)
Specifications
Model No.	SMT-VW5502
Panel Size	55 '' LG IPS LCD Screen(super narrow bezel 1.8mm)
Aspect Ratio	16:9
Max Resolution Support	1920x1080
Color	8Bit,16.7M
Brightness (nits)	500cd/m2
Contrast	4000:1
Visual Angle (H/V)	178°
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
Input and output
DVI	1
HDMI	1
D-15 RGB Input(VGA)	1
YUV/YPbPr	1(3xBNC)
S-(YC)	1(2xBNC)
Composite Video Input/(AV)	3(3xBNC)
Composite Video Output	2(2xBNC)
AUDIO INPUT	1
Split Screen	Support Picture in Picture(PIP/POP/PAP)
Power
Power Supply	AC100V~240V
Maximum Power Consumption	250W
Standby Power Consumption	<=3W
Temperature
Working Temperature	0°C~50°C
Working Humidity	20%-80%
Dimension	1213.5x684.3x127.0mm

Video Wall Controller(Built-in each Screen)
Input	CVBS	1*BNC port, support PAL/NTSC all formats
	DVI	1*DVI-I port, support SVGA/XGA/WUXGA
	VGA	1*D15 port, support SVGA/XGA/WXGA
	HDMI	5*BNC ports, support SVGA/XGA/WUXGA
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
	CVBS	support PAL/NTSC all formats
	DVI	1*DVI-I port, support SVGA/XGA/WUXGA
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	ADD Code
Engineering software	LCD_CONTROL_Manager,RS232 interface control(1 input,2 looping out)
Working temperature	0~70 ℃
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W, according to different Screen models
Weight	About 3.5KG

All pictures and function introduction for 55 inch LCD video wall here are only for reference. Accurate details referred to Instruction brochure and Physical Package. SMT has the rights for the final explanation.
